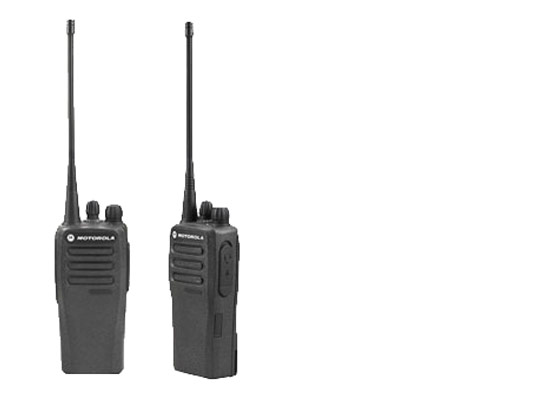

Motorola Products > MOTOTRBO Terminals & Infrastructure > DP1400 Portable Radio





Simple and affordable, the DP1400 portable two-way analogue/digital radio connects your workforce efficiently—and has the flexibility to grow with your business. By combining the best of two-way radio functionality with the latest analogue and digital technology, the DP1400 is perfect for the everyday user who wants to stay connected. Fully compatible with the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.

You can also choose the analogue-only DP1400 model, which gives you great voice communications today, with a path to crisp and clear digital voice communications when you’re ready. All you will need is a simple software upgrade.

Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication that’s right for you.

Analogue/Digital - Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet. The freedom to migrate to the latest technology at your own pace.



Transmit Interrupt Capability (decode only) - Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.



Compatible with Radio Management Suite - Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.



Dual Capacity Direct Mode - Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel – without the need for a repeater.



IP54 Rated - Dustproof and splashproof, so you can work with confidence in challenging environments.

People

Who

Viewed

This

Page

Also







Frequency range
VHF (136-174 MHz);
UHF (403-470 MHz)
Power
Power supply- 7.5V (Nominal)
Battery life (based on a 05/05/90 duty cycle)
NiMH (1400mAh) Battery
Analogue: 9 hours Digital : 11.5 hours

Li-Ion Slim (1600 mAH) Battery
Analogue: 10.5 hours Digital : 13.5 hours

High Cap Li-ion (2200 mAH) Battery
Analogue: 14.5 hours Digital: 18.5 hours
Audio output
0.5 W (Internal)



Physical Characteristics

Rotary on/off volume
Yes
Tri-colour status LED
Yes
Emergency button
Programmable
Keypad
None
Display
No Display
Weight (with standard battery)
406g (NiMH 1400mAH)
341 g (Slim Li-Ion 1600mAH)
346 g (Li-Ion 2200mAH)
Dimensions H x W x D (with standard battery)
127.7 X 61.5 X 42.0 mm (NiMH 1400mAH)
127.7 X 61.5 X 39.0 mm (Slim Li-Ion 1600mAH)
127.7 X 61.5 X 44.0 mm (Li-Ion 2200mAH)




Radio Features



Programmable buttons
Yes
Voice operated transmit (VOX)
Yes
Time out timer
Yes
Talkaround
Yes
Signalling
MDC/QCII/Digital
Scrambling
Built-in
Scan types
Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group
Selective calling
Yes
Digital Private Line
Yes
Private Line
Yes
Monitor/Permanent (Sticky) Monitor
Yes
CPS (Customer Programming Software)
Yes
Channel spacing (kHz)
12.5, 25, 20
Number of channels
16
Channel scan
Yes
Call tones
Yes
Busy channel lockout
Yes
Audio gain control
Yes
Integrated voice and data
Yes
Advanced Software Features
Remote Monitor



Technology

System type
Conventional
Digital technology
Yes



User Environment



Noise reduction software
Yes
Submersible
Yes
Accelerated life test
Yes
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54
