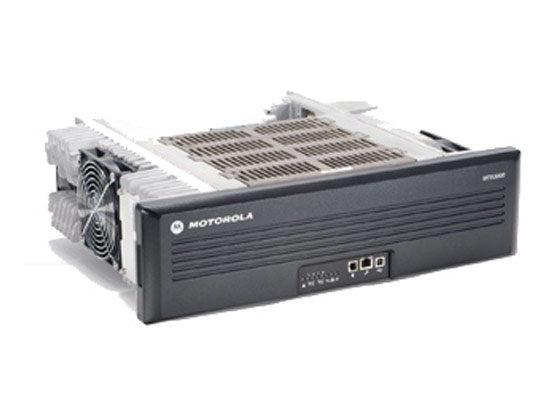

MTR3000 is a MOTOTRBO™ integrated voice and data base-station/repeater designed to meet the requirements of small public safety, utilities and professional organizations.

The MTR3000 operates in digital mode in MOTOTRBO Conventional, IP Site Connect, Capacity Plus and Connect Plus systems delivering increased capacity, spectral efficiency, integrated data applications and enhanced voice communications.

In addition the MTR3000 can also operate in analogue mode for conventional and LTR®/PassPort® Trunking systems providing a flexible high power base station/repeater.

Compatibility: Capacity MAX, IP Site Connect, Capacity Plus, Linked Capacity Plus and Connect Plus.

Features and Benefits

MTR3000 Standard Features:

Operates in analog or MOTOTRBO digital mode with LED indicating mode of operation
Reliable 100W continuous duty cycle operation
12.5 or 25 kHz programmable channel spacing
Analog and digital conventions are all standard in one base station without the cost of additional software or hardware
RoHS (Restriction of Hazardous Substances) compliant

MTR3000 programmed in MOTOTRBO mode provides:

Supports two simultaneous voice paths in digital 12.5 kHz TDMA 6.25e compliant
Divides existing channel into two timeslots, delivering twice the capacity through a single repeater
Supports MOTOTRBO IP Site Connect for increased wide area coverage and Capacity Plus single site trunking without a separate hardware controller.
The MTR3000 supports the full MOTOTRBO feature set, and is compatible with all the MOTOTRBO system architectures: single site conventional, Capacity MAX, IP Site Connect, Capacity Plus, Linked Capacity Plus and Connect Plus.
